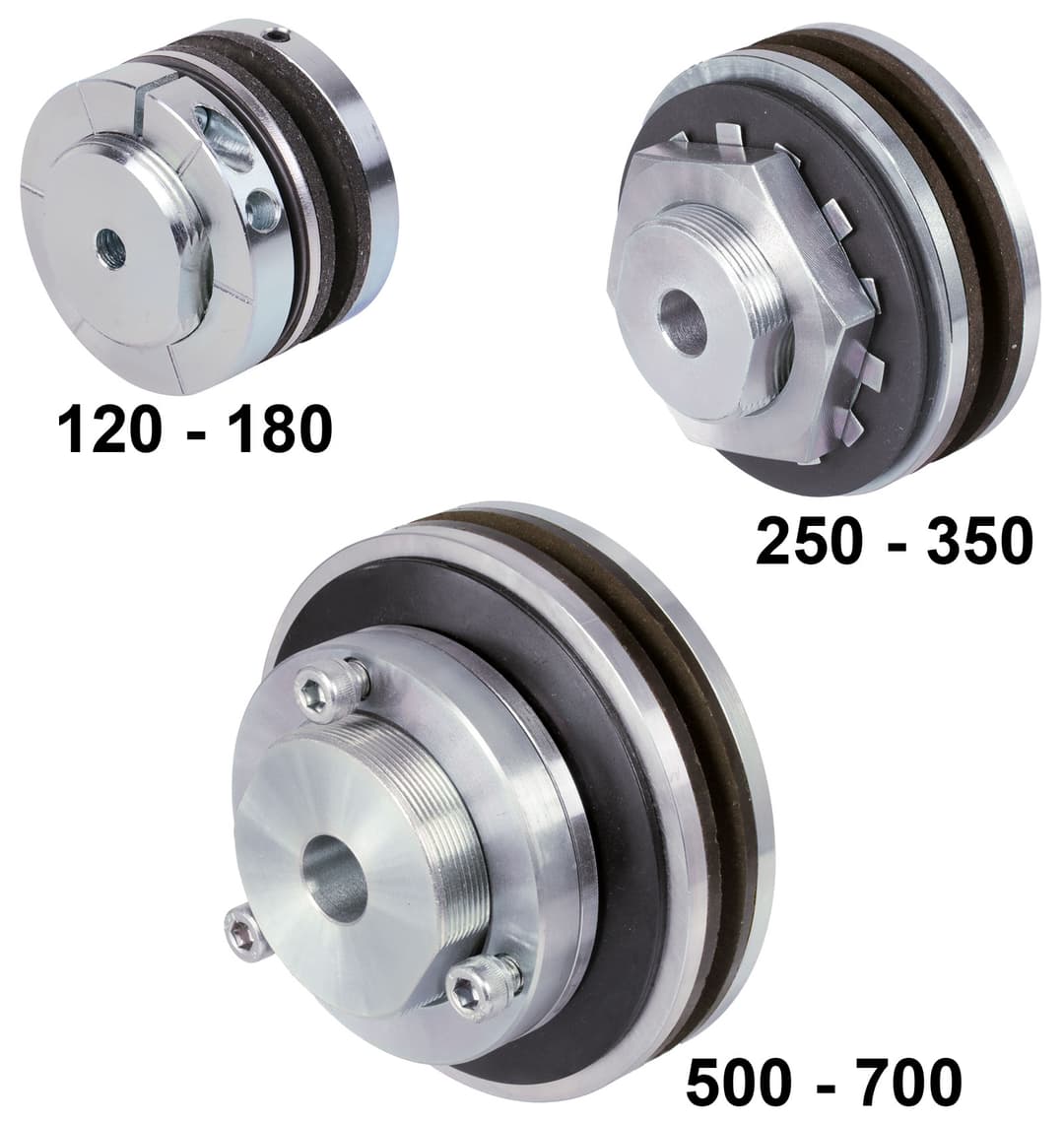

MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings
Sliding hub FS torque adjustable 20-90 Nm with pilot bore 13H8 outer diameter 90mm max. bore: 25mm bush length 13.7mm
Manufacturer part no. 61203000
$140.87≈ 122.34 €
In stock — 10 unitslead time 14 d
Estimated landed cost
| Item | €122.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.47 |
| Total delivered | €164.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Torque | 917.73 kg·cm |
| Weight | 1.36 kg |
Other characteristics
| Alternative bushing length 1 | 10.3 mm |
| Alternative bushing length 2 | 21 mm |
| Bore of sprocket h8 | 49.28 mm |
| Bore pilot hole | 13 mm |
| Disc springs quantity | 1 |
| Max bore diameter | 25 mm |
| Outer diameter | 90 mm |
| Standard bushing length | 13.7 mm |
| Total length | 62 mm |
| Material | Steel |
| Max speed | 2500 min-1 |
| Max torque | 20 – 90 Nm |
Description

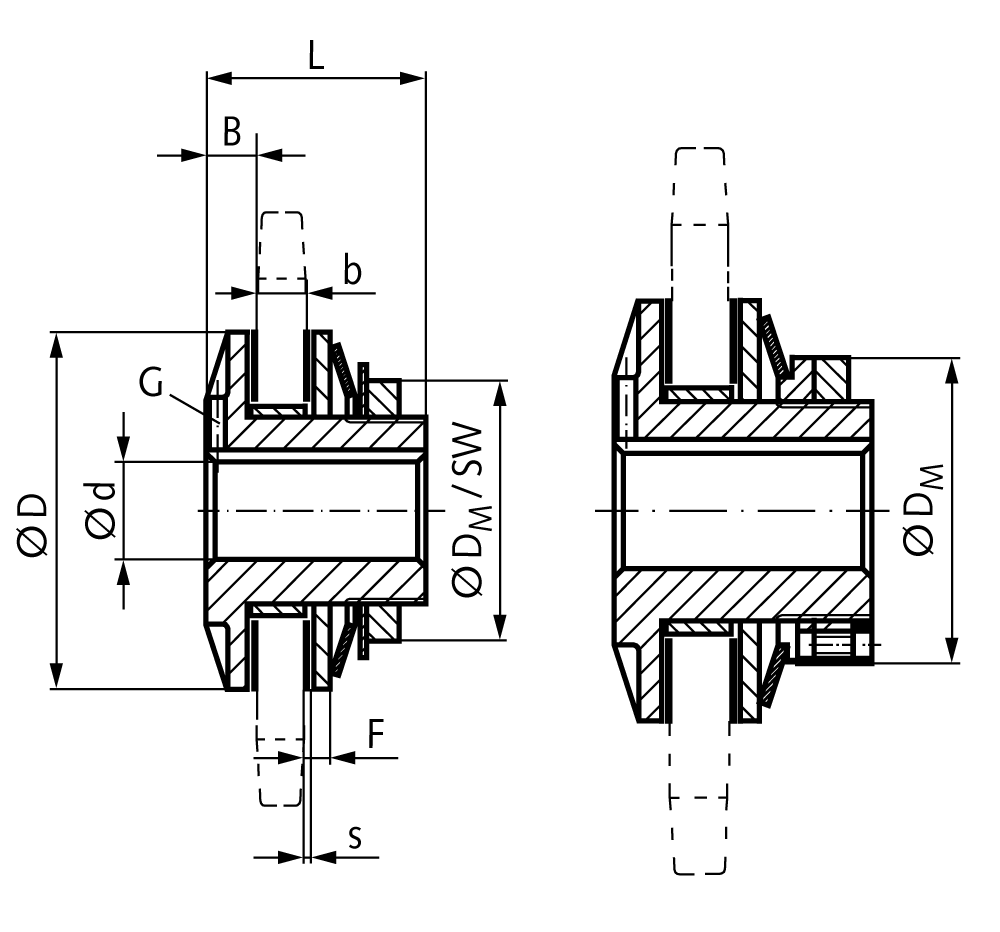

Material: Hub: Steel, zinc-plated and passivated. Spring: Steel, black. The sliding hubs can be delivered ex stock, pre-drilled with standard bush length. Required bush length: The required bush length depends on the width of the component to be joined. Up to Prod. No. 612 006 00: Bush length 4.2 mm for a component width of 5.3 to 6.0 mm. From Prod. No. 612 010 00: Bush length in mm = 1.5 x s + b. Other bush lengths and customized bores or feather-key grooves against extra charge. At sizes 120 and 180, the lock washer is a round plate, without edges.
