MÄDLERMÄDLER· Parts for Operating

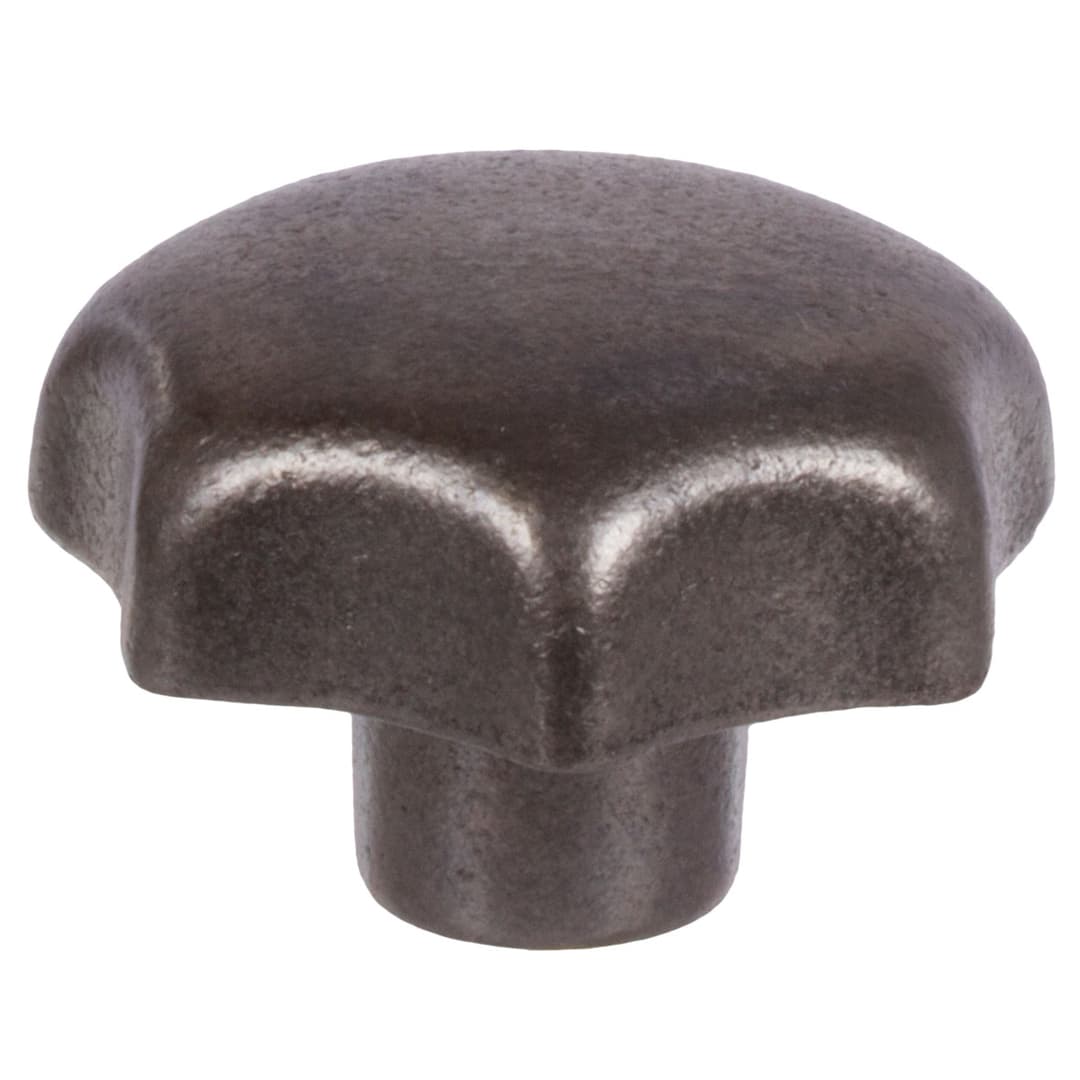

Star knob DIN 6336 made from cast iron type E diameter 32mm
Manufacturer part no. 66123200
$5.92≈ 5.14 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €5.14 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €4.03 |
| Total delivered | €24.17 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 49 g |
Other characteristics
| Distance to knob | 10 mm |
| Hub diameter | 12 mm |
| Min length bore thread | 12 mm |
| Outer diameter | 32 mm |
| Total height | 20 mm |
| Inner thread size | M 6 mm |
| Material | Grey cast iron |
| Surface | Blank |
| Version | E |
Description

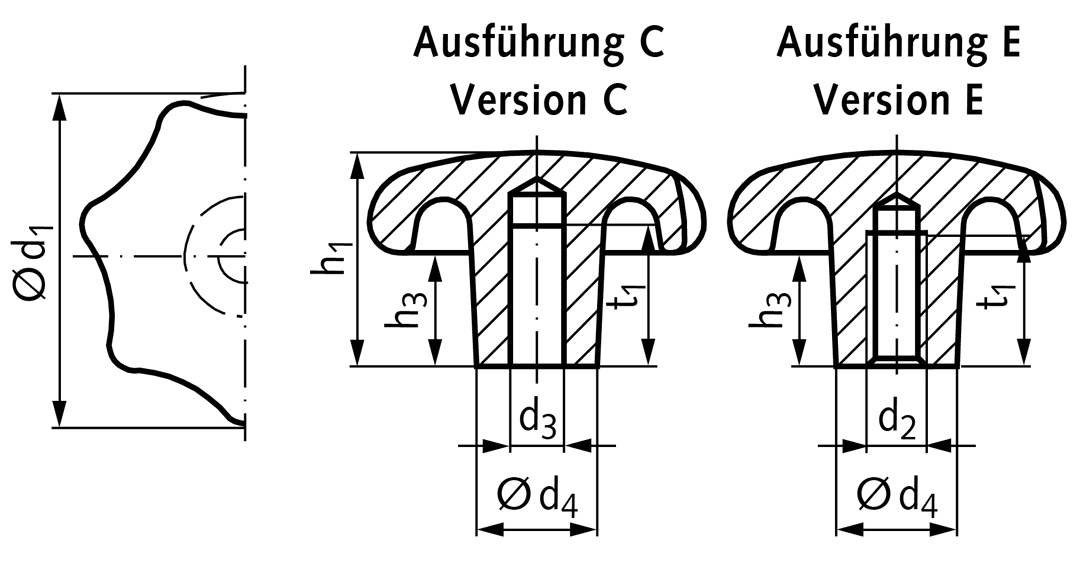

Material: Grey cast iron. Version C: with blind hole H7. Version E: with thread d2 (tapped blind hole).
