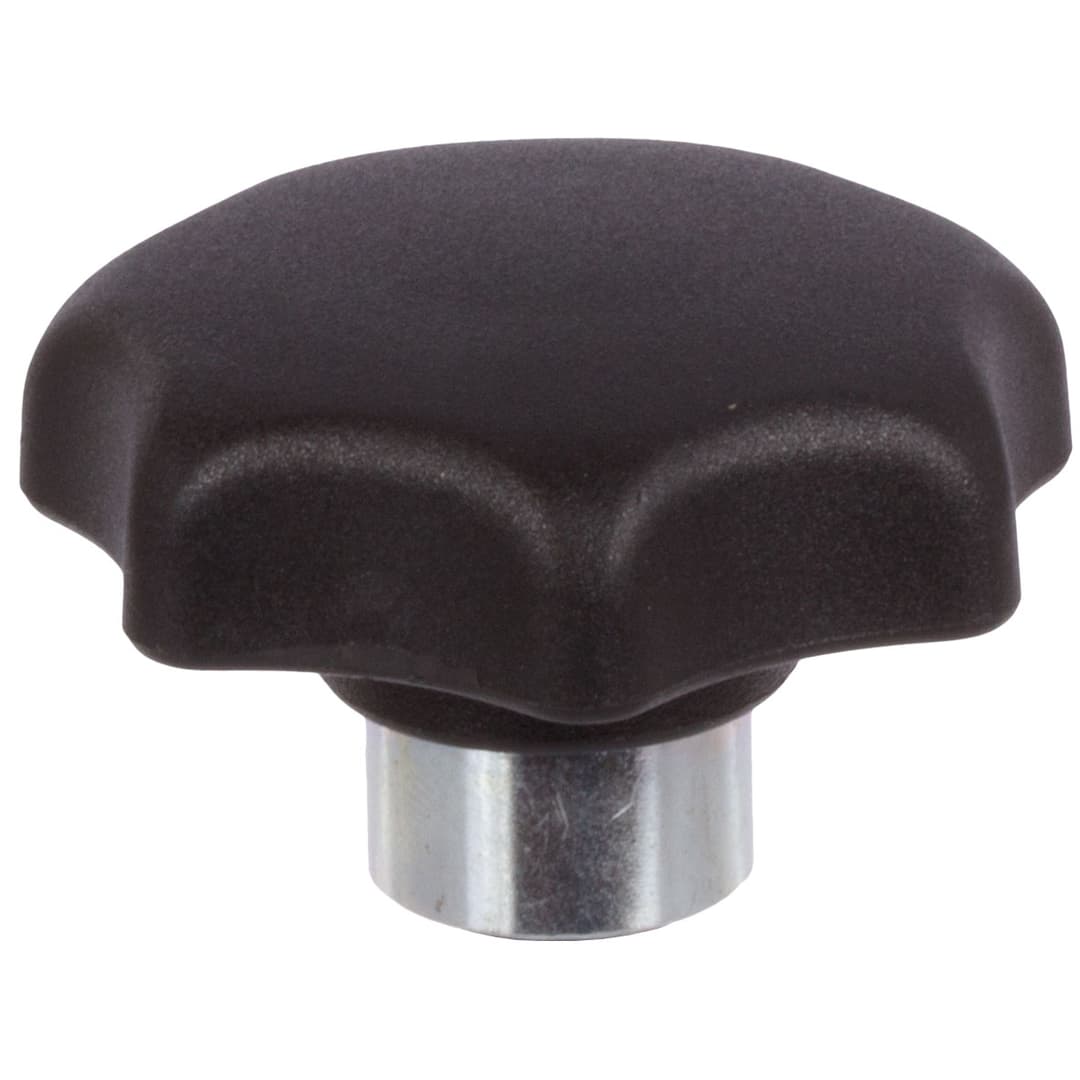

Star knob similar to DIN 6336 type C bore 10H7
Manufacturer part no. 66135000
$5.05≈ 4.39 €
In stock — 5 unitslead time 14 d
Estimated landed cost
| Item | €4.39 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.88 |
| Total delivered | €23.27 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 53 g |
Other characteristics
| Bore diameter | 10 mm |
| Distance to knob | 17 mm |
| Hub diameter | 18 mm |
| Min length bore thread | 18 mm |
| Outer diameter | 50 mm |
| Overhang of bushing | 10 mm |
| Total height | 32 mm |
| Material | Polyamide (PA) |
| Surface | Blank |
| Version | C |
Description

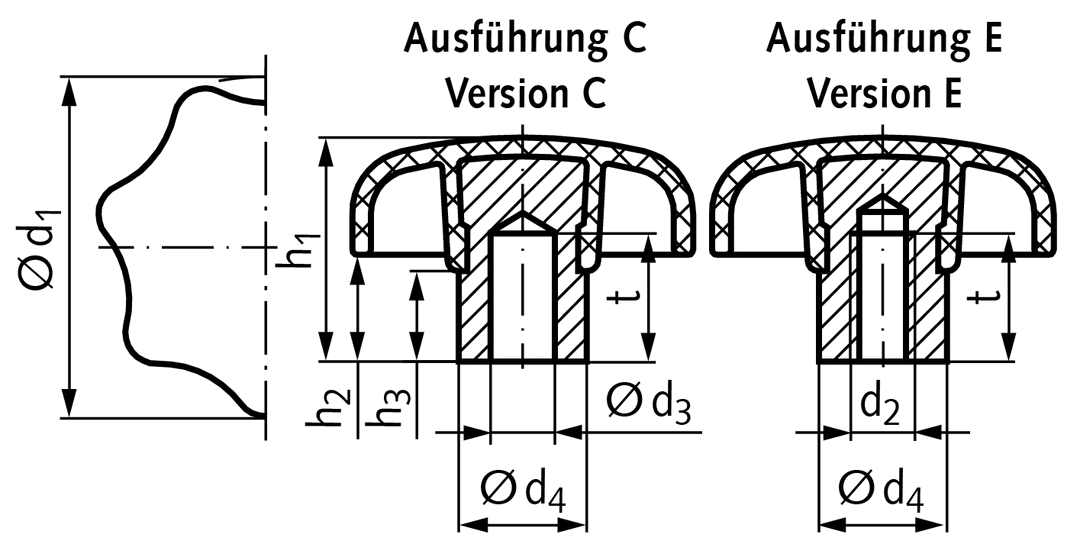

Material: Plastic Thermoplast (Polyamide), impact resistant, black, matt finish. Bush: Steel, zinc-plated, chromated blue. Version C: with blind hole H7. Version E: with thread (tapped blind hole). The full diameter of the contact surface is made from Steel. The protruding steel bush allows a perfect cross-pin connection.
