Ball knob DIN 319 version E duroplast PF 31 with threaded bush from steel diameter 20mm M5
Manufacturer part no. 66412000
$1.57≈ 1.36 €
In stock — 18 unitslead time 14 d
Estimated landed cost
| Item | €1.36 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €3.27 |
| Total delivered | €19.63 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

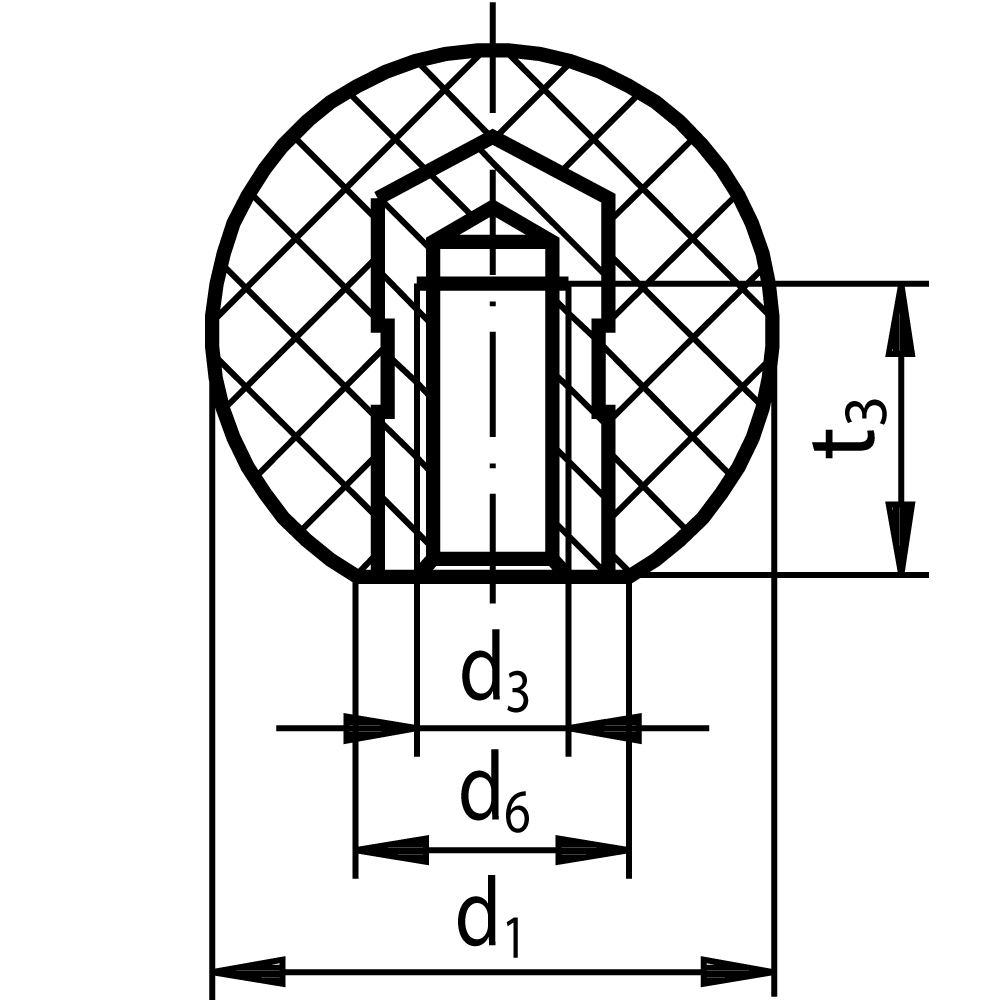

Specifications (automatically extracted)
Mechanical
| Weight | 8.1 g |
Other characteristics
| Ball knob diameter | 20 mm |
| Diameter of support surface | 12 mm |
| Height | 18 mm |
| Thread depth | 7.5 mm |
| Inner thread size | M 5 mm |
| Material | Duroplast (PF31) / Steel |
| Surface | Zinc-plated |
Description
Material PF31: Duroplatic PF31 (phenolic resin), impact resistant, black, high-gloss finish. Version E = With threaded bush of zinc-plated steel. Size 16/M4 threaded bush made from brass.
