Standard side-lever grease gun DIN 1283 M10x1 with high-pressure rubber armoured hose with coupler

MÄDLERMÄDLER· Mechanics & transmission

Standard side-lever grease gun DIN 1283 M10x1 with high-pressure rubber armoured hose with coupler

Name: Standard side-lever grease gun DIN 1283 M10x1 with high-pressure rubber armoured hose with coupler
Brand: MÄDLER
Price: 93.20 USD
Availability: BackOrder

Manufacturer part no. 68056000

$93.20≈ 80.75 €

Price summary

Listed by MÄDLER at €80.75. Delivered to France, including shipping, VAT and any customs duty, it comes to about €114.90. Prices last checked on 2026-08-05.

Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.

On backorderlead time 14 d

View at seller ↗

Estimated landed cost

Landed cost breakdown
Item	€80.75
Shipping	€15.00
VAT (20%)	€19.15
Total delivered	€114.90

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Datasheets & documents

Specifications (automatically extracted)

Mechanical

Weight

1.28 kg

Other characteristics

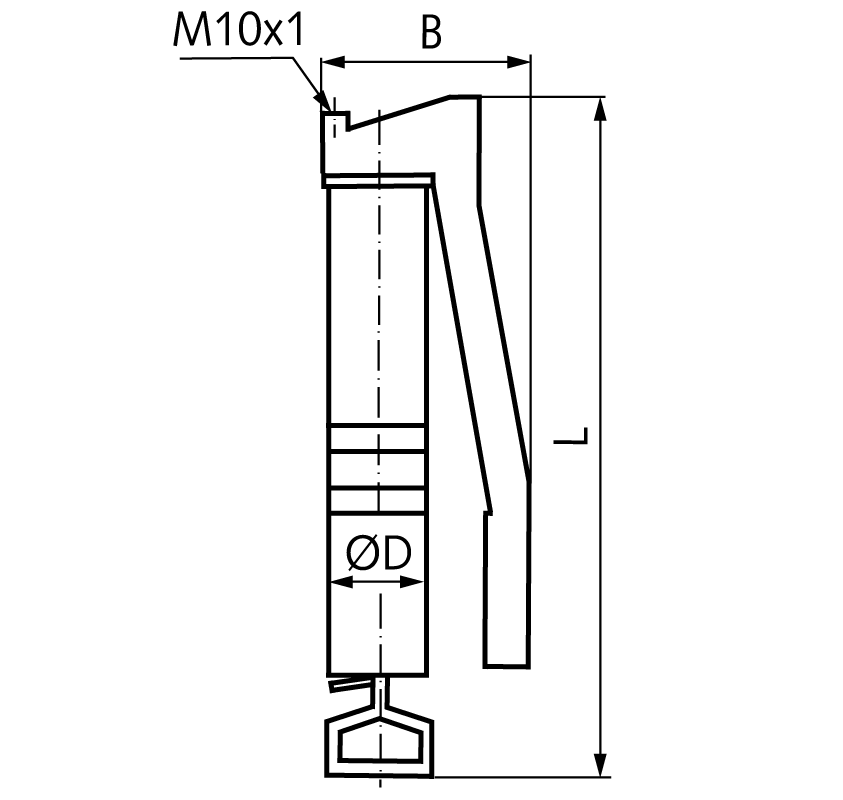

B	120 mm
Bursting pressure	1 650 bar
D	56.1 mm
L	370 mm
Maximum pressure	800 bar
Working pressure	400 bar
Connection thread	M10 x 1
Flow rate per stroke	0-1,5
Lubrication hose	Ø13 x 300

Description

Material: Steel, zinc plated. Standard hand lever grease gun made in Germany in premium quality according to DIN 1283 for all conical grease nipples according to DIN 71412. High fitting accuracy at the pump piston to prevent false lubrication. With short stroke system and infinitely variable piston rod fixation. The grease gun can be filled and vented via the screw-on nipple. With high-pressure rubber armoured hose and 4-jaw hydraulic mouthpiece. Supplied unfilled. Filling options: Grease cartridge 400g DIN 1284 or filling device or loose fat, 500g. Medium: for greases up to NLGI class 2 according to DIN 5181.
