MÄDLERMÄDLER· Mechanics & transmission

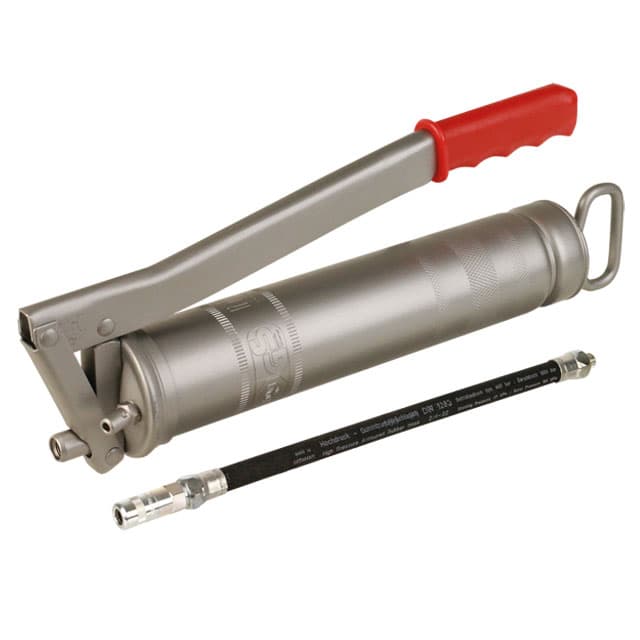

Side-lever grease gun for Lube-Shuttle® cartridges M10x1 with high-pressure rubber armoured hose with coupler
Manufacturer part no. 68056001
$87.14≈ 75.50 €
Price summary
Listed by MÄDLER at €75.50. Delivered to France, including shipping, VAT and any customs duty, it comes to about €108.60. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €75.50 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €18.10 |
| Total delivered | €108.60 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

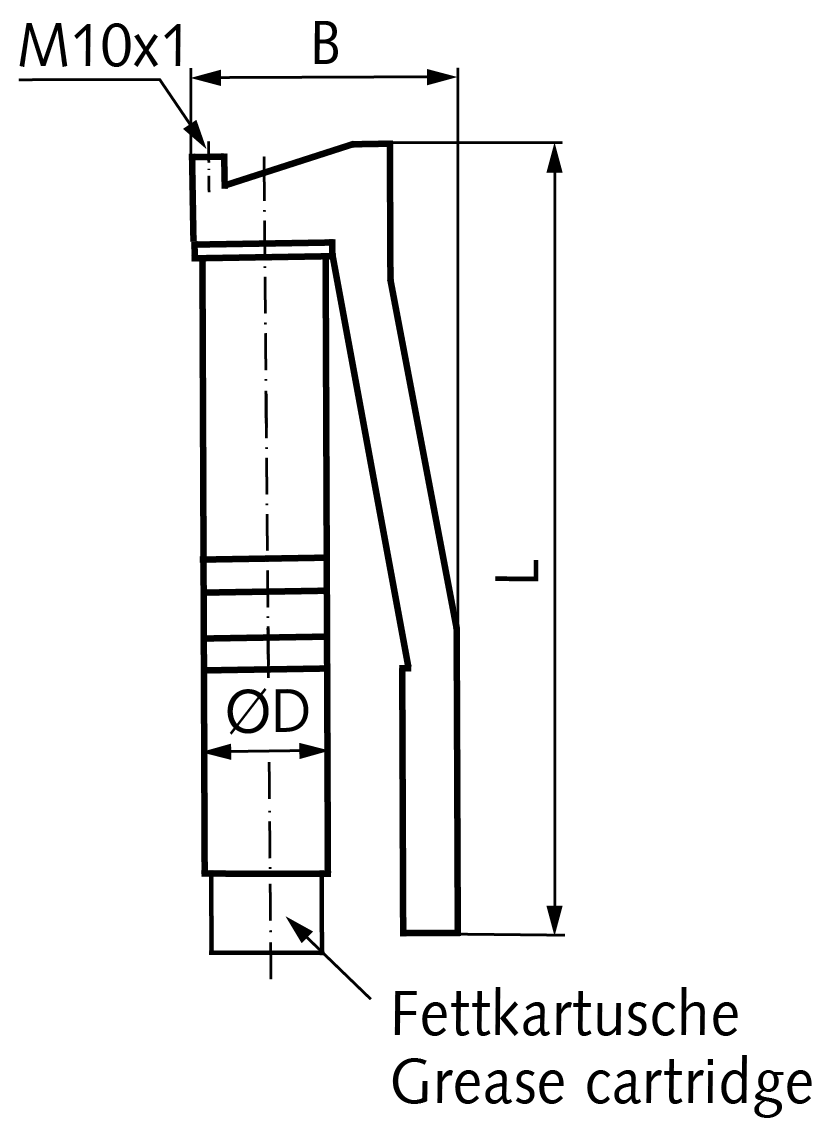

Specifications (automatically extracted)
Mechanical
| Weight | 940 g |
Other characteristics
| B | 120 mm |
| Bursting pressure | 1 650 bar |
| D | 56.1 mm |
| Flow rate per stroke | 1.5 |
| L | 325 mm |
| Maximum pressure | 800 bar |
| Working pressure | 400 bar |
| Connection thread | M10 x 1 |
| Lubrication hose | Ø13 x 300 |
Description
Material: Steel, zinc plated. Hand lever grease gun made in Germany for Lube-Shuttle® system cartridges for all conical grease nipples according to DIN 71412. With high-pressure rubber armoured hose and 4-jaw hydraulic mouthpiece. Cartridge change without unscrewing the grease gun. Permanent visibility of filling level and grease type. Optimum emptying of remaining grease. Supplied without cartridge. Filling options: Grease cartridge 400g for Lube-Shuttle®.
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
Similar products
MÄDLERBackorder

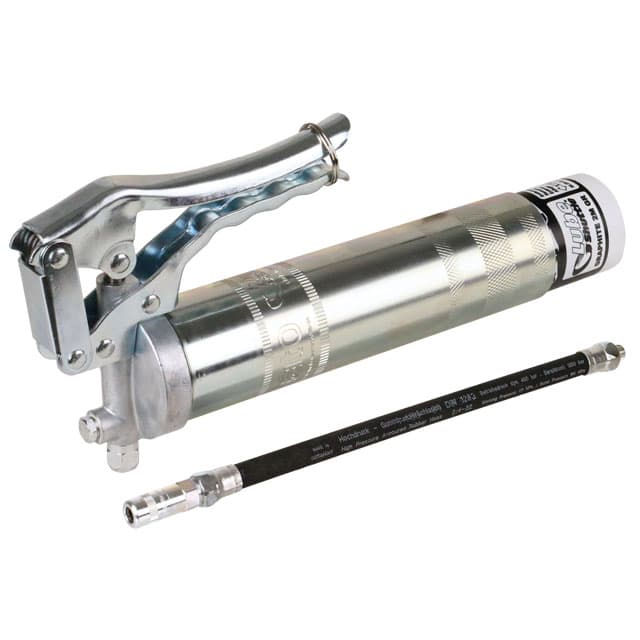

One-hand grease gun for Lube-Shuttle® cartridges M10x1 with high-pressure rubber armoured hose with coupler
