One-hand grease gun for Lube-Shuttle® cartridges M10x1 with high-pressure rubber armoured hose with coupler
Manufacturer part no. 68056002
$102.94≈ 89.09 €
Price summary
Listed by MÄDLER at €89.09. Delivered to France, including shipping, VAT and any customs duty, it comes to about €124.91. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €89.09 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €20.82 |
| Total delivered | €124.91 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

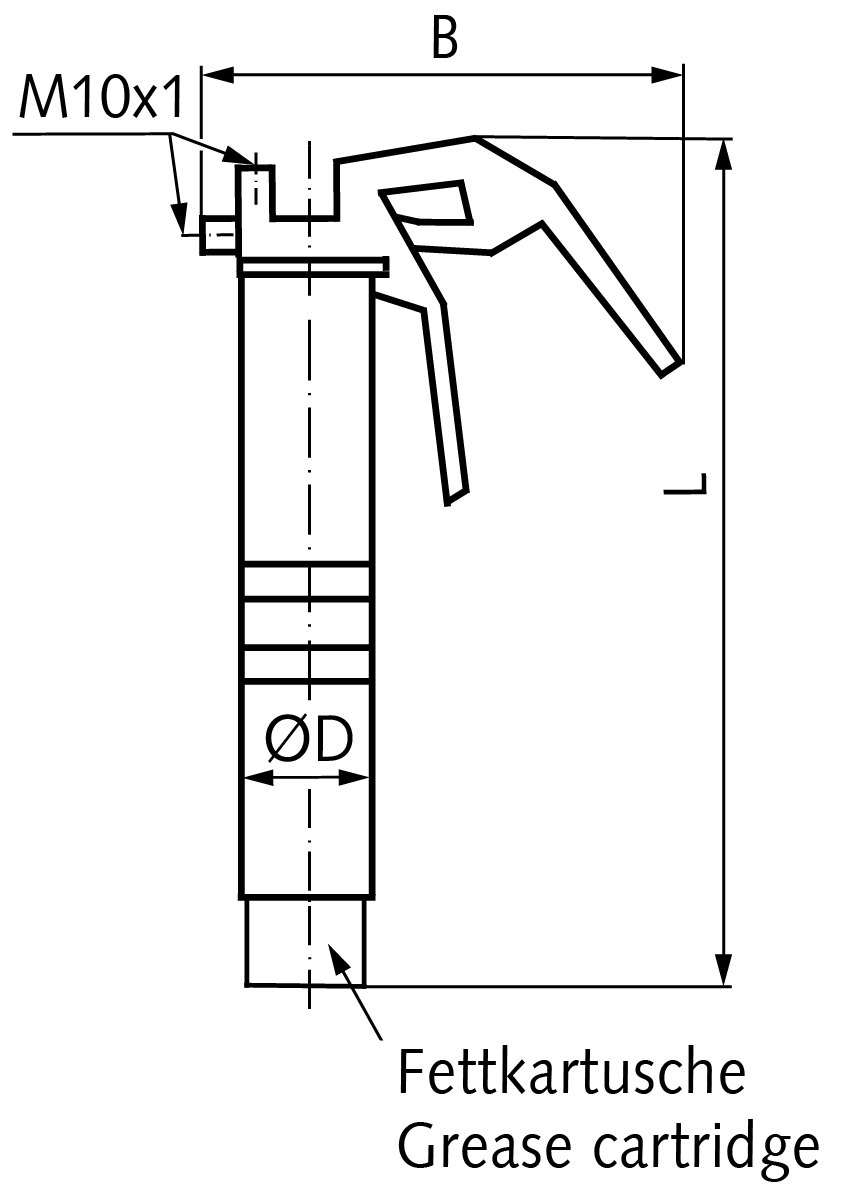

Specifications (automatically extracted)
Mechanical
| Weight | 980 g |
Other characteristics
| B | 230 mm |
| Bursting pressure | 1 650 bar |
| D | 56.1 mm |
| Flow rate per stroke | 0.8 |
| L | 304 mm |
| Maximum pressure | 300 bar |
| Working pressure | 200 bar |
| Connection thread | M10 x 1 |
| Lubrication hose | Ø13 x 300 |
Description
Material: Steel, zinc plated. One-hand grease gun made in Germany for Lube-Shuttle® system cartridges for all conical grease nipples according to DIN 71412. The one-hand operation allows the second hand to hold the mouthpiece on the grease nipple during the lubrication process. Two connections for horizontal or vertical operation. With high-pressure rubber armoured hose and 4-jaw hydraulic mouthpiece. Cartridge change without unscrewing the grease gun. Permanent visibility of filling level and grease type. Optimum emptying of remaining grease. Supplied without cartridge. Filling options: Grease cartridge 400g for Lube-Shuttle®.
