MÄDLERMÄDLER· Electronic components

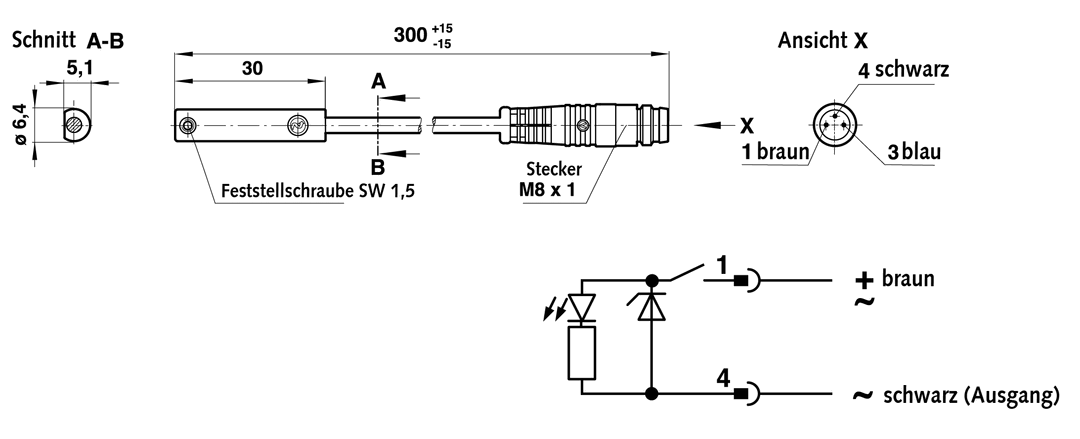

Magnetic switch with dry reed contact, Wechsler without connector cable length 5m
Manufacturer part no. 81000002
$52.34≈ 45.35 €
Price summary
Listed by MÄDLER at €45.35. Delivered to France, including shipping, VAT and any customs duty, it comes to about €72.42. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €45.35 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.07 |
| Total delivered | €72.42 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 92 g |
Other characteristics
| Cable length | 5 m |
| Function | Change-over, without connector |
| Material | Plastic |
| Surface | Blank |
Description
Materials: Housing: Plastic. Cable: PVC 2 x 0.25, PVC 3 x 0.25. Mode of operation: N/O with LED (yellow), change over contact without LED. Switching Voltage (Ub):10 to 240 V AC/170 V DC. Switching Voltage output: Ub – 2.7 V. Switching current (see graph): 0.18 A max. Switching power: 10 W/10 VA max. Note: Switch life may be greatly reduced if the maximum values for contact load, switching current and switching voltage are exceeded. Contact resistance: 150 mW. Response time: 1.8 ms. Operating temperature: -20°C to +80°C. Protection rating: IP 66 (DIN 40050). Shock resistance: 50 g (during 11 ms). Vibration resistance: 35 g (at 2000 Hz).
