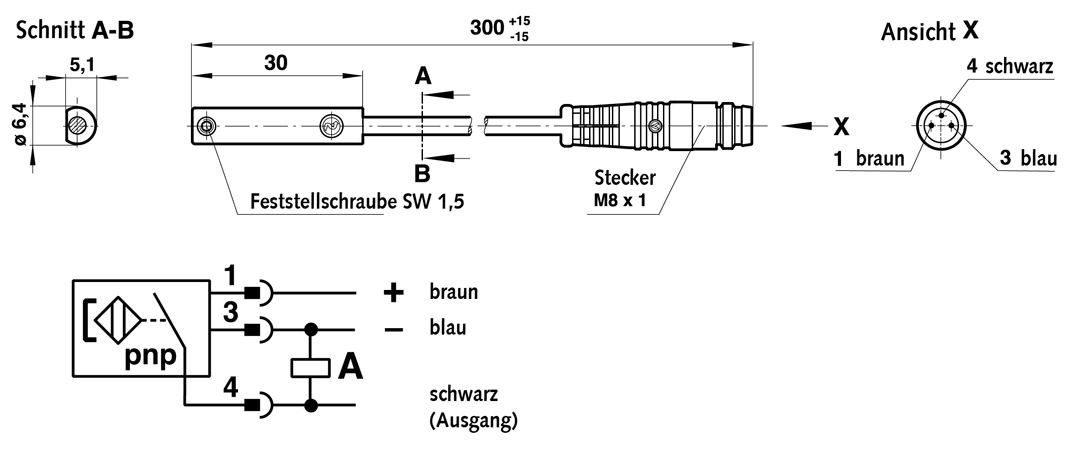

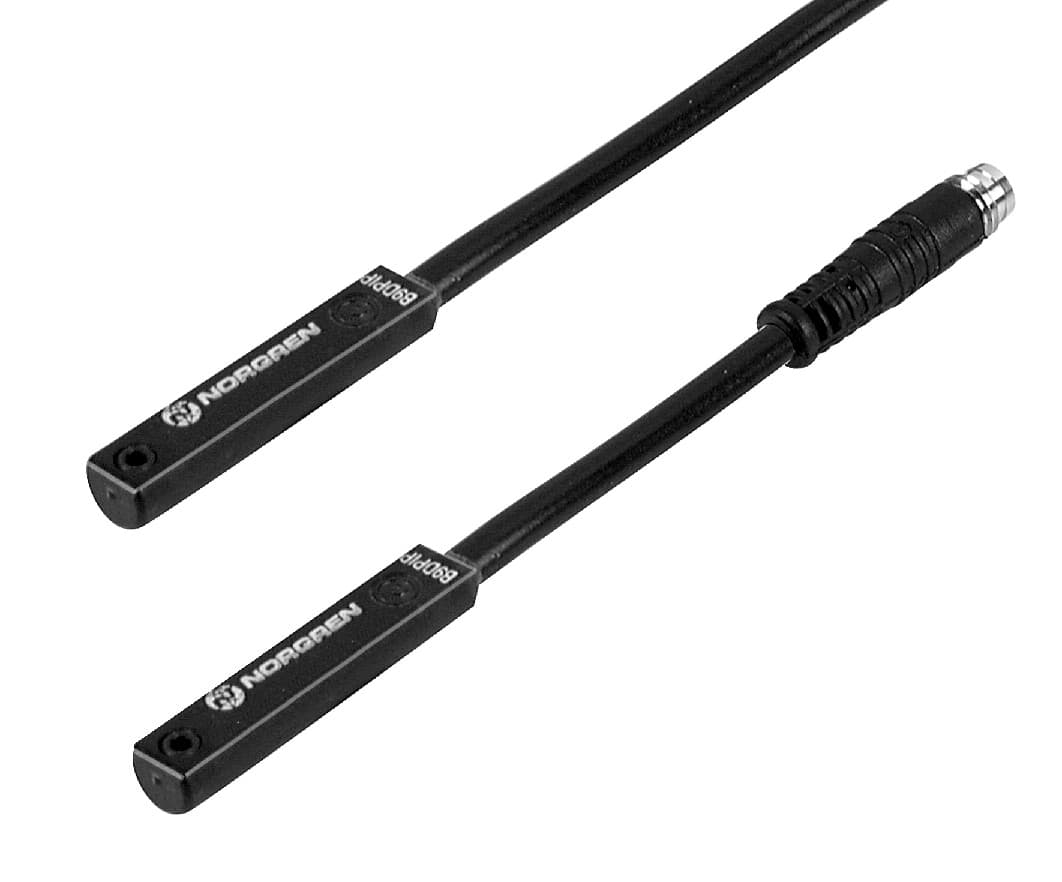

Magnetic switch, inductive, pnp with connector cable length 0,3m
Manufacturer part no. 81000006
$73.22≈ 63.37 €
Price summary
Listed by MÄDLER at €63.37. Delivered to France, including shipping, VAT and any customs duty, it comes to about €94.04. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €63.37 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €15.67 |
| Total delivered | €94.04 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 16 g |
Other characteristics
| Cable length | 0.3 m |
| Function | pnp, with connecor |
| Material | Plastic |
| Surface | Blank |
Description
Materials: Housing Plastic, EMC according to EN 60947-5-2. Mode of Operation: Output with LED (yellow). Switching voltage (Ub): 10 to 30 V DC. Switching voltage output: Ub – 2 V. Induced voltage: 0.5 V.. Switching Current (see Graph): 150 mA max.. Switching power: 4.5 W max.. Response time: < 0.5 ms. Operating frequency: 5 kHz. Operating temperature: -20°C to +80°C. Protection rating: IP 67 (DIN 40050). Cable: PVC 3 x 0.25. Cable length: 2 m.
