MÄDLERMÄDLER· Pneumatic Elements

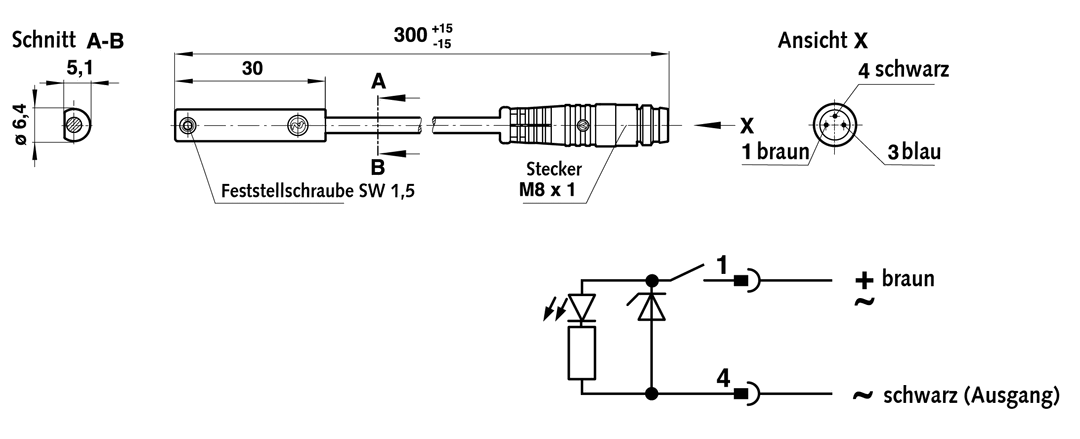

Magnetic switch with dry reed contact, N/O switch with connector cable length 0,3m
Manufacturer part no. 81000003
$36.02≈ 31.28 €
In stock — 1 unitslead time 14 d
Estimated landed cost
| Item | €31.28 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €9.26 |
| Total delivered | €55.54 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 16 g |
Other characteristics
| Cable length | 0.3 m |
| Function | Switch, with connector |
| Material | Plastic |
| Surface | Blank |
Description
Materials: Housing: Plastic. Cable: PVC 2 x 0.25, PVC 3 x 0.25. Mode of operation: N/O with LED (yellow), change over contact without LED. Switching Voltage (Ub):10 to 240 V AC/170 V DC. Switching Voltage output: Ub – 2.7 V. Switching current (see graph): 0.18 A max. Switching power: 10 W/10 VA max. Note: Switch life may be greatly reduced if the maximum values for contact load, switching current and switching voltage are exceeded. Contact resistance: 150 mW. Response time: 1.8 ms. Operating temperature: -20°C to +80°C. Protection rating: IP 66 (DIN 40050). Shock resistance: 50 g (during 11 ms). Vibration resistance: 35 g (at 2000 Hz).
