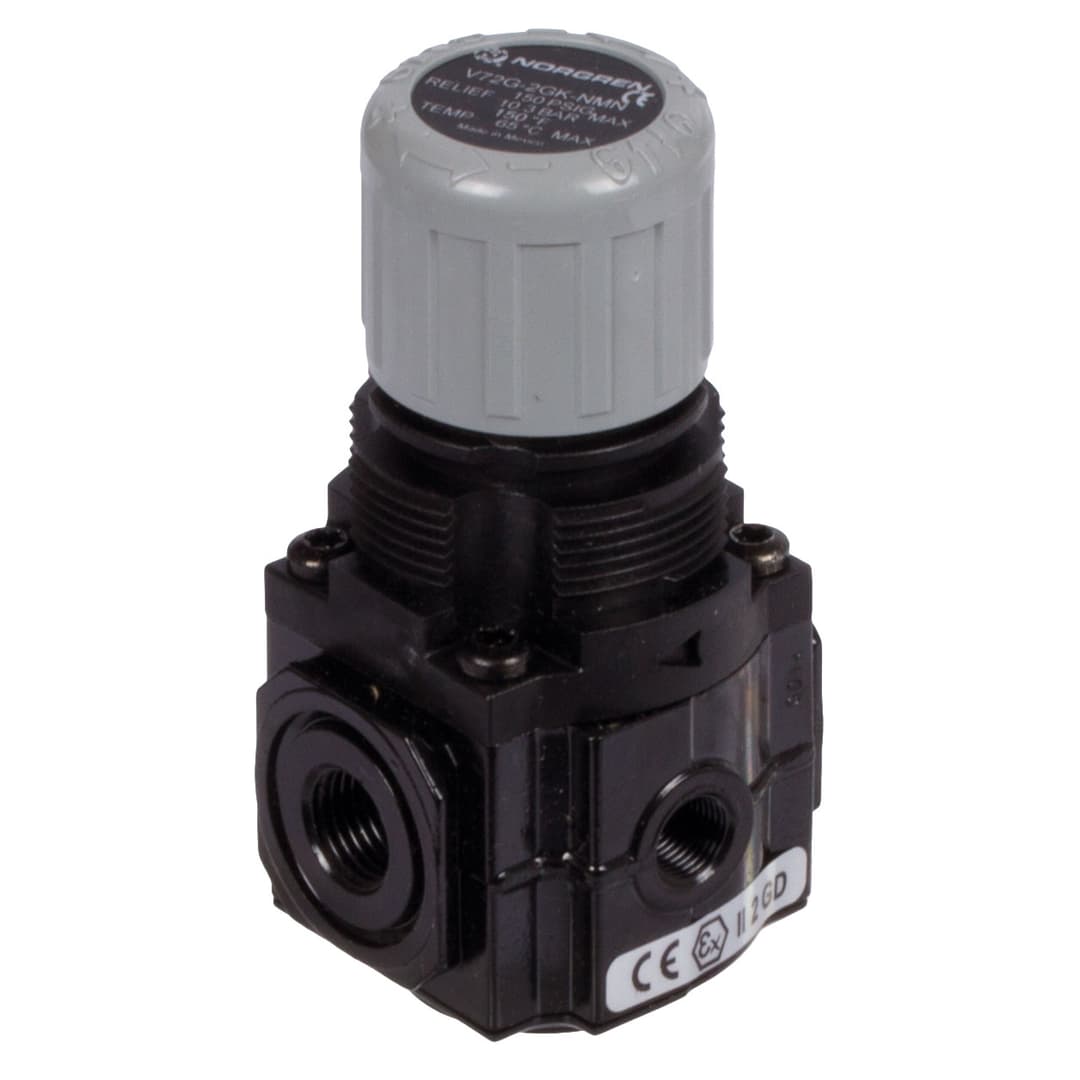

Regulator relieving, port G1/4
Manufacturer part no. 83000500
$76.98≈ 66.63 €
Price summary
Listed by MÄDLER at €66.63. Delivered to France, including shipping, VAT and any customs duty, it comes to about €97.96. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €66.63 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €16.33 |
| Total delivered | €97.96 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 360 g |
Other characteristics
| Connection | G1/4 |
| Material | Zinc die-cast |
| Surface | Blank |
Description
Material: Housing: Zinc die-cast. End covers: Polyacetal. Valve: Brass. O-ring seals: Synthetic elastomers. Medium: Compressed air. Operating pressure: Max. 20 bar. Pressure range: 0.3 to 10 bar as standard. Relieving Operation: Relief function as standard. Max. flow: 33 l/s (connection G1/4, inlet pressure 10 bar, set pressure:6.3 bar, Øp = 1 bar).
