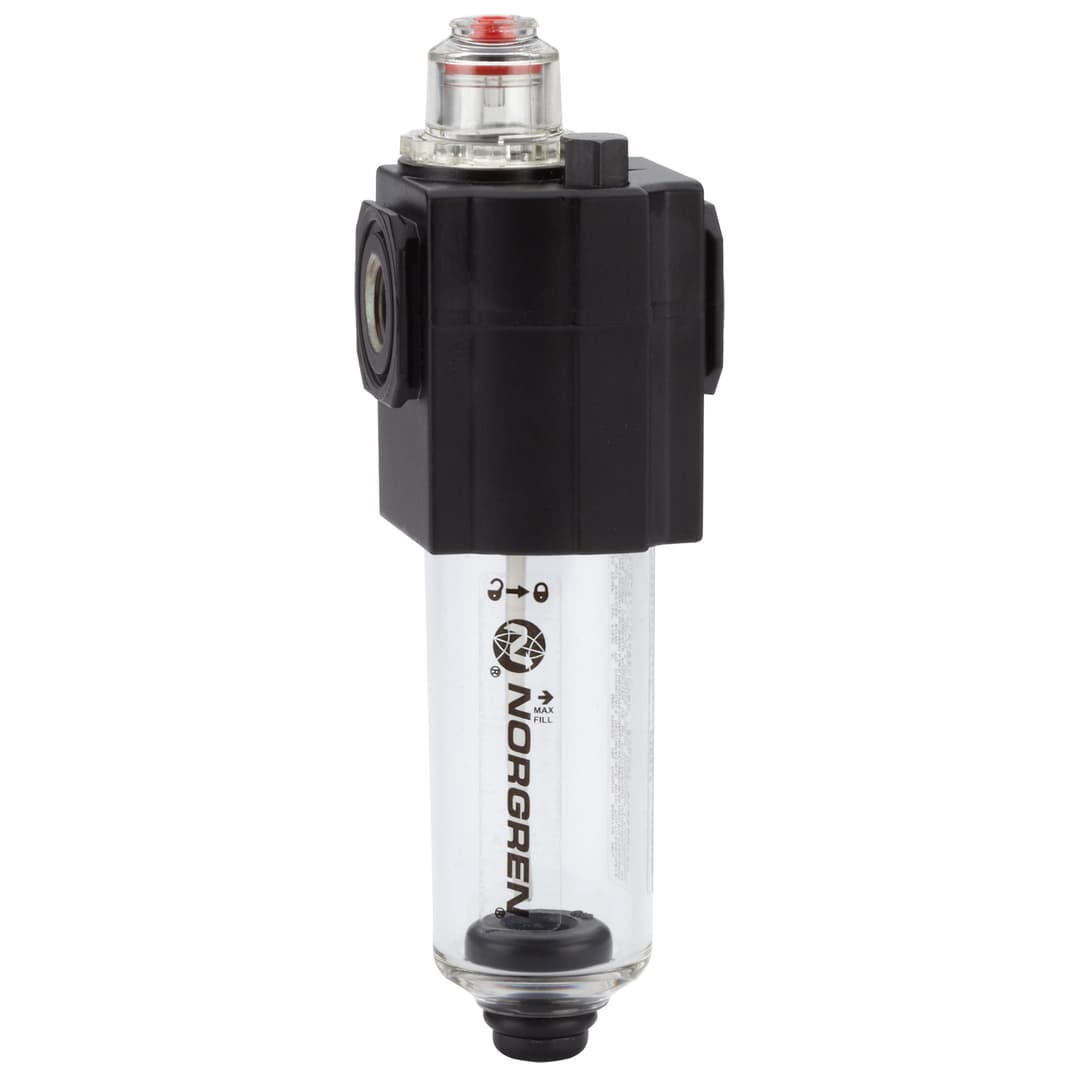

Lubricator, port G1/4
Manufacturer part no. 83001500
$258.32≈ 223.58 €
Price summary
Listed by MÄDLER at €223.58. Delivered to France, including shipping, VAT and any customs duty, it comes to about €286.30. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €223.58 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €47.72 |
| Total delivered | €286.30 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 520 g |
Other characteristics
| Connection | G 1/4″ |
| Material | Polycarbonate |
| Surface | Blank |
| Type | Standard-fog oiler |
Description
Material: Bowl: Polycarbonate. Housing: Zinc die-cast. O-ring seals: synthetic elastomers. Sight-feed dome: Polycarbonate. Medium: Compressed Air. Operating pressure: max. 10 bar. Bowl size: 0.04 litre. Flow: 0.47 l/s to 24 l/s*. *Max. value (connection G 1/4, inlet pressure = 6.3 bar, Øp = 0.5 bar).
