MÄDLERMÄDLER· Motors & actuators

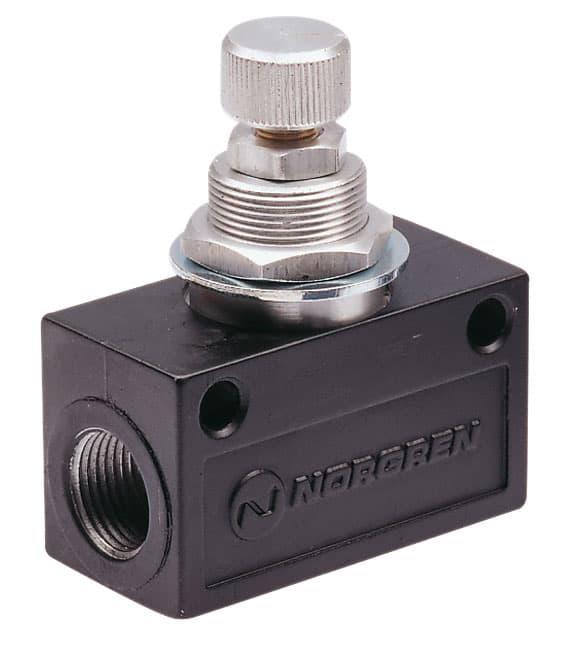

Block form flow regulator uni-directional thread G1/8
Manufacturer part no. 86541800
$44.99≈ 38.94 €
Price summary
Listed by MÄDLER at €38.94. Delivered to France, including shipping, VAT and any customs duty, it comes to about €64.73. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €38.94 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €10.79 |
| Total delivered | €64.73 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents

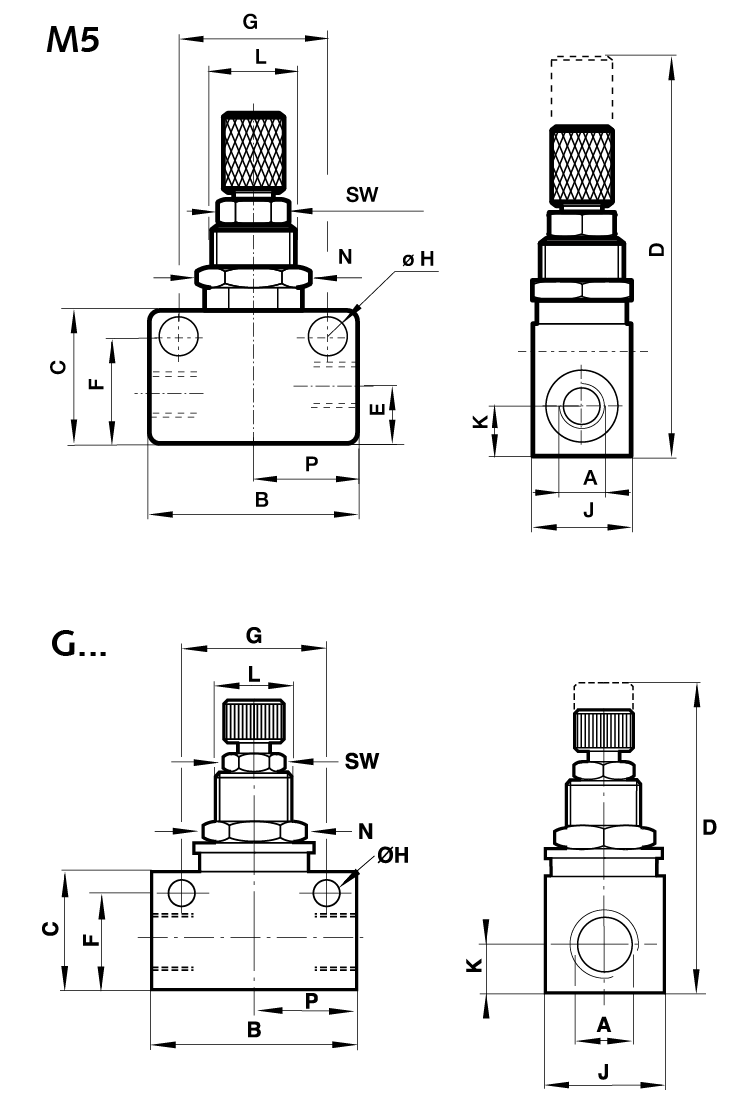

Specifications (automatically extracted)
Mechanical
| Weight | 65 g |
Other characteristics
| Diameter of mounting holes | 4.5 mm |
| Distance for mounting holes | 16.5 mm |
| Distance from axis to bottom | 8 mm |
| Height of housing | 20 mm |
| Max panel thickness | 4 mm |
| Mounting hole center distance | 24 mm |
| Panel bore | 12.5 mm |
| Position of insert | 17 mm |
| Total height | 51 mm |
| Total length | 34 mm |
| Total width | 16 mm |
| Wrench size after outside thread | 14 mm |
| Wrench size bevor outside thread |
Description
Materials: M5: Housing plastic. Threaded insert: Brass, Seals: NBR. Valve needle: Brass, nickel-plated. G1/8, G1/4: Housing: Zinc alloy. Seals: NBR, Valve needle/inner part: Brass. Outer parts: Aluminium alloy. G3/8, G1/2: Housing: Aluminium alloy. Seals: NBR. Valve needle/inner part: Brass. Outer parts: Aluminium alloy. Medium: Compressed air, filtered, lubricated or non-lubricated. Inert gases. Operating pressure: 1 to 10 bar (2 to 10 bar for M5). Operating temperature: 80°C max. (60°C max. for M5). Mode of operation: Flow regulator.
