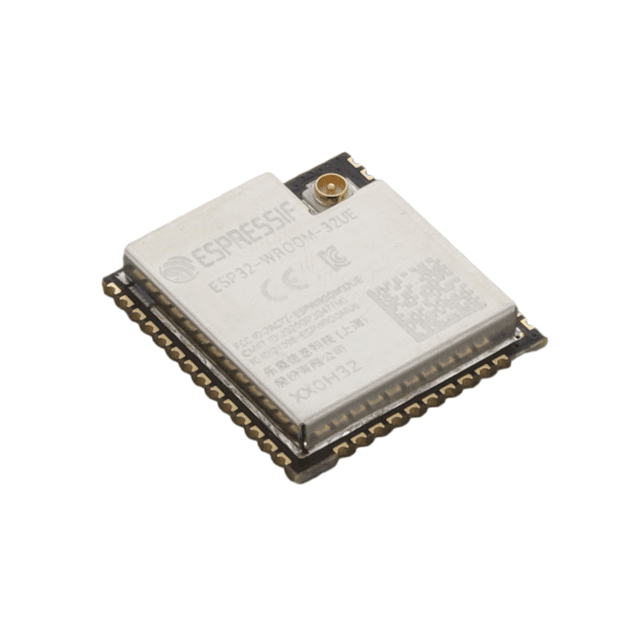

Espressif Systems ESP32-WROOM-32UE-N4 — RF TXRX MOD BT WIFIU.FL SMD

Name: Espressif Systems ESP32-WROOM-32UE-N4 — RF TXRX MOD BT WIFIU.FL SMD
Brand: Espressif Systems
Price: 4.36 EUR
Availability: InStock

Manufacturer part no. ESP32-WROOM-32UE-N4

€4.36

In stock — 1903 unitslead time 56 d

Unknown

View at seller ↗

Estimated landed cost

Item	€4.36
Shipping	€18.00
VAT (20%)	€4.47
Total delivered	€26.83

Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

Volume pricing

Qty	Unit price	Saving
≥ 1	€4.36
≥ 10	€3.77	−13 %
≥ 25	€3.57	−18 %
≥ 100	€3.29	−25 %
≥ 250	€3.12	−28 %

Datasheets & documents

📄 Datasheet

Specifications (automatically extracted)

Other characteristics

Debit de donnees	150 Mbps
Puissance sortie	20 dBm
Sensibilite	-98 dBm
Boitier	Module 38-SMD
Circuit integre composant utilise	ESP32-D0WD-V3
Frequence	2,4GHz ~ 2,5GHz
Interfaces serie	ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART
Modulation	CCK, DSSS, OFDM
Norme gamme rf	Bluetooth, WiFi
Programmable digikey	Non vérifié
Protocole	802.11b/g/n, Bluetooth v4.2 +EDR, classe 1, 2 et 3
Taille memoire	4Mo Flash, 448Ko ROM, 536Ko SRAM
Temperature de fonctionnement	-40°C ~ 85°C
Tension alimentation	3V ~ 3,6V
Type d antenne	Antenne non incluse, U.FL
Type de montage	Montage en surface

Compliance

Moisture sensitivity (MSL)

3 (168 heures)

Description

Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, classe 1, 2 et 3 Modules d'émetteurs-récepteurs RF 2,4GHz ~ 2,5GHz Antenne non incluse, U.FL Montage en surface
