MÄDLERMÄDLER· Mechanics & transmission
Manufacturer part no. 14041101
Listed by MÄDLER at €116.34. Delivered to France, including shipping, VAT and any customs duty, it comes to about €157.61. Prices last checked on 2026-10-04.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
| Item | €116.34 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €26.27 |
| Total delivered | €157.61 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.

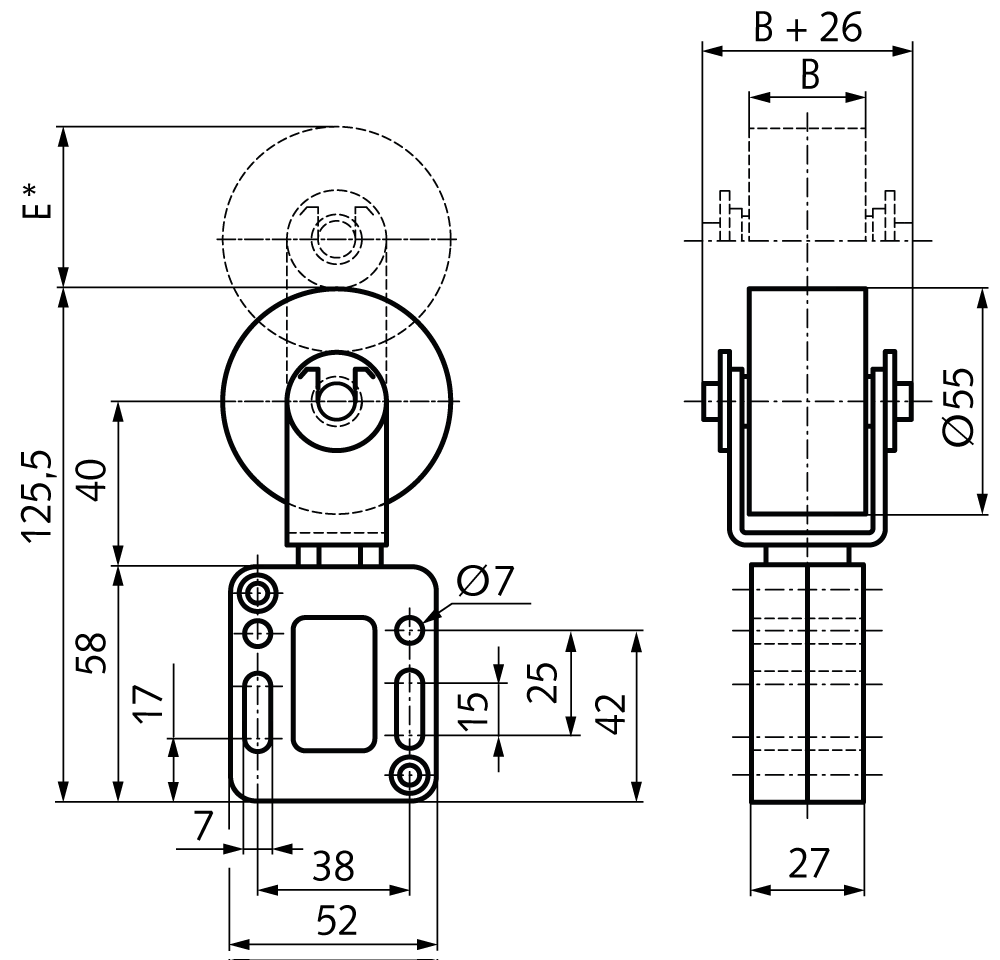

| Weight | 280 g |
| Recommended belt width max. | 15 mm |
| Tensioning way | 40 mm |
| Width of tensioning roller | 20 mm |
| Material | Plastic |
| Surface | Black |
| Tensioning force | 58 – 32 N |
Material: Housing from thermoplast. Tensioning pulley made of ultra-high-molecular weight polyethylene based on PE-UHMW, electrostatically dissipative. Screws and spring from stainless steel. These small, ready-to install tensioners enable noise reduction and wear reduction at belts. • With spiral, linear spring. On choice two tensioning forces. • With colored wear-off indicator: Green: o.k. Yellow: still o.k. Red: Tensioning force too low (below 32N or 60N). • Usable travel up to the end of the yellow range: About 32mm. Total travel about 40mm. • Max. permissible belt speed 3m/s Temperature range: -20°C bis +60°C. * Tensioning way. ** Max. recommended belt width.
