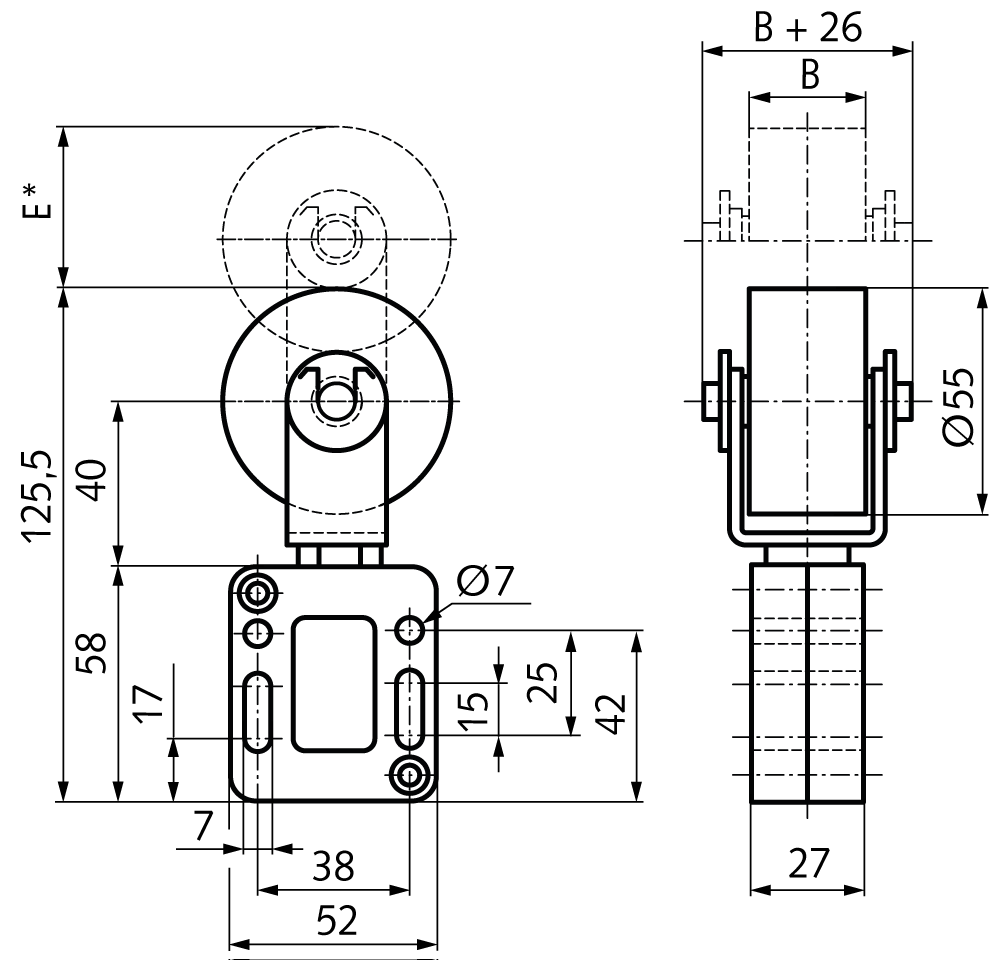

Belt tensioner SPANN-BOX® size 0 low tensioning force roller-Ø 55mm (cylindrical) roller width 30mm
Manufacturer part no. 14041102
$143.47≈ 124.59 €
On backorderlead time 14 d
Estimated landed cost
| Item | €124.59 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €27.92 |
| Total delivered | €167.51 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 300 g |
Other characteristics
| Recommended belt width max. | 25 mm |
| Tensioning way | 40 mm |
| Width of tensioning roller | 30 mm |
| Material | Plastic |
| Surface | Black |
| Tensioning force | 58 – 32 N |
Description

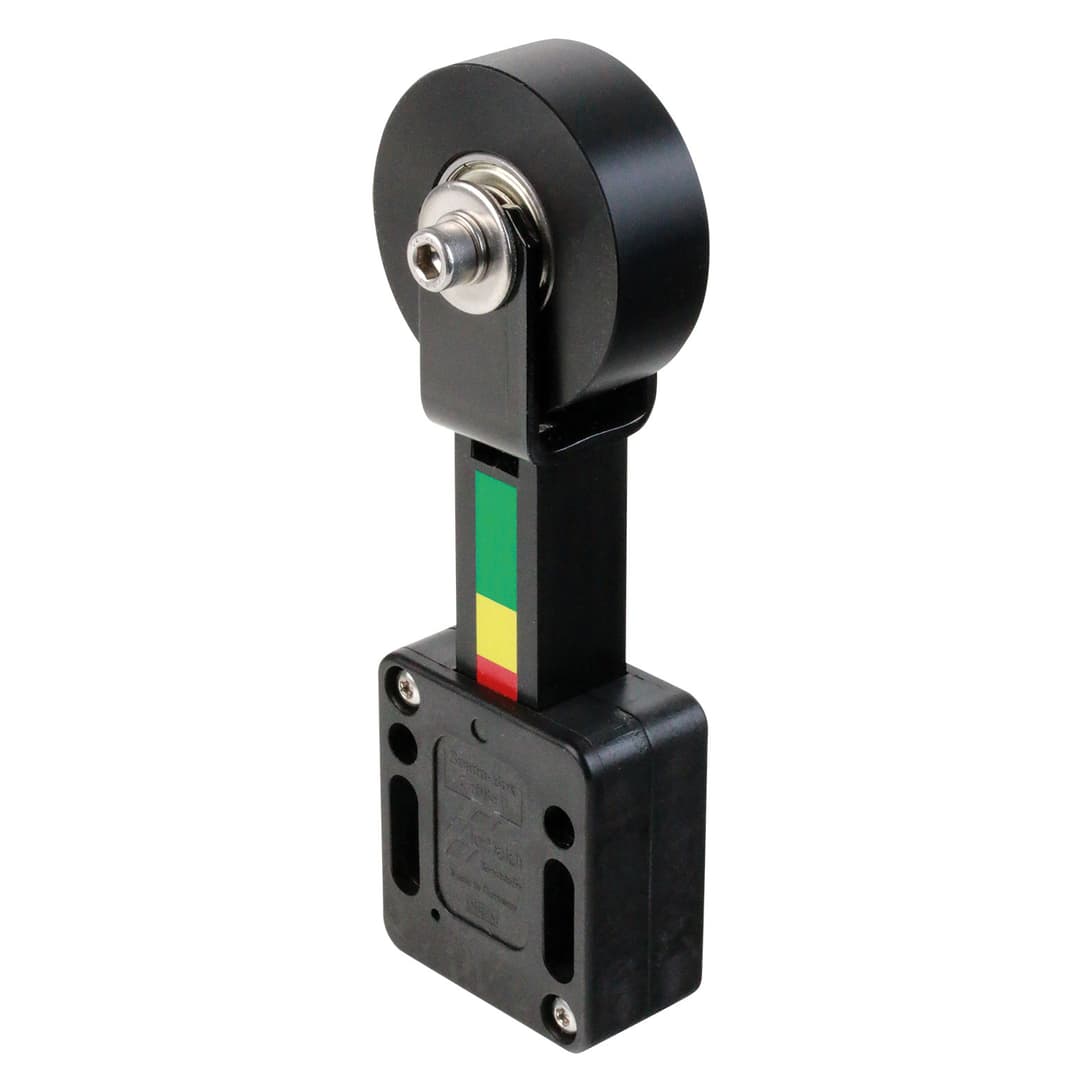

Material: Housing from thermoplast. Tensioning pulley made of ultra-high-molecular weight polyethylene based on PE-UHMW, electrostatically dissipative. Screws and spring from stainless steel. These small, ready-to install tensioners enable noise reduction and wear reduction at belts. • With spiral, linear spring. On choice two tensioning forces. • With colored wear-off indicator: Green: o.k. Yellow: still o.k. Red: Tensioning force too low (below 32N or 60N). • Usable travel up to the end of the yellow range: About 32mm. Total travel about 40mm. • Max. permissible belt speed 3m/s Temperature range: -20°C bis +60°C. * Tensioning way. ** Max. recommended belt width.
