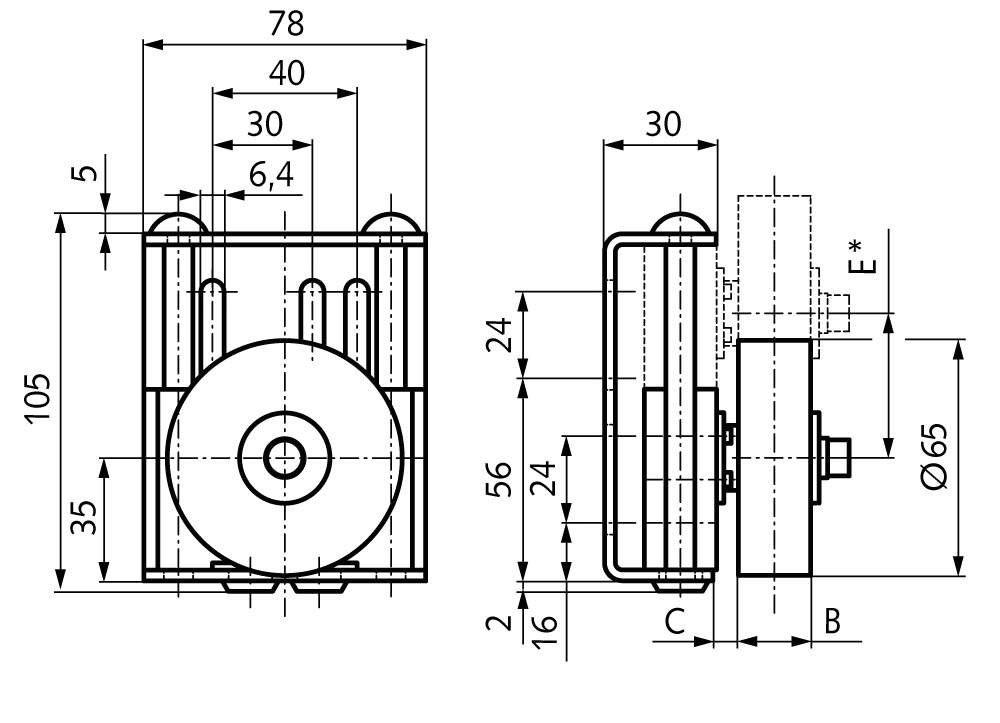

Belt tensioner SPANN-BOY® TS Roller-Ø 65mm Roller width 30mm
Manufacturer part no. 14041802
Manufacturer part no. 14041802
| Item | €247.56 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €52.51 |
| Total delivered | €315.07 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
| Weight | 640 g |
| Recommended belt width max. | 25 mm |
| Tensioning way | 40 mm |
| Width of tensioning roller | 30 mm |
| Material | Plastic (PE-UHMW) / Steel |
| Surface | Black powder-coated |
| Tensioning force | 33 – 190 N |
Material: Housing made of steel, black, powder-coated. Tensioning pulley made of ultra-high molecular weight polyethylene based on PE-UHMW, electrostatically dissipative. These very low, ready-to-install belt tensioners enable noise reduction and wear reduction at belts. • With two springs of different strengths that can be activated individually or together. This allows three clamping forces to be set. • Usable tensioning way 40mm. • Max. permissible belt speed 6m/s. Temperature range: -20°C bis +60°C. * Tensioning way. ** Max. recommended belt width. *** Tensioning force range. Adjustable Tensioning Forces: The SPANN-BOY® TS has two different springs: one with low force and one with high force. These springs gan get activated separately or together. So it is possible to adjust three different tensioning forces: Only the low-force spring activated: 65 – 33 N. Only the high-force spring activated: 125 – 63 N. Both springs together activated: 190 – 96 N.
