Open angular drive OW3 with polyacetal bevel gears stainless steel shafts Ø 5mm module 1 16 teeth 1:1 version 30L
Manufacturer part no. 41035810
$57.52≈ 49.84 €
Price summary
Listed by MÄDLER at €49.84. Delivered to France, including shipping, VAT and any customs duty, it comes to about €77.81. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €49.84 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €12.97 |
| Total delivered | €77.81 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 84 g |

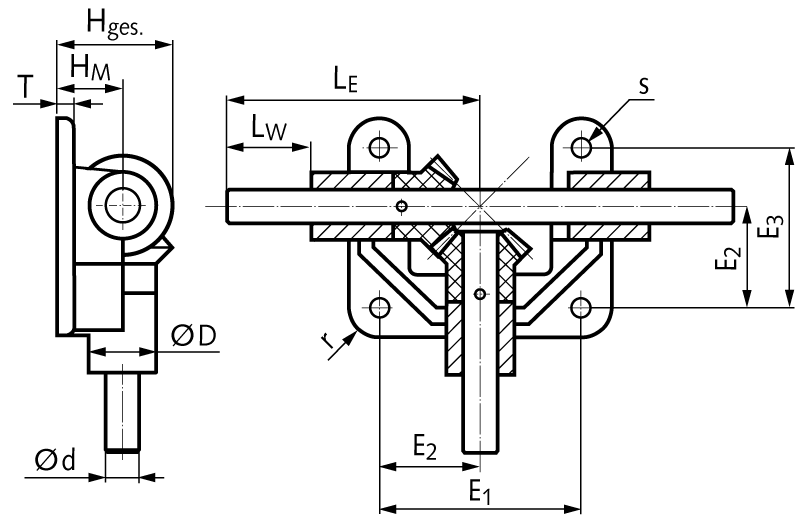

Other characteristics
| D | 12 mm |
| E1 | 38.8 mm |
| E2 | 19.4 mm |
| E3 | 32 mm |
| Hges | 18.8 mm |
| Hm | 10 mm |
| Le | 50 mm |
| Lw | 15 mm |
| Max md | 8.3 Ncm |
| Module | 1 |
| R | 6 mm |
| S | 4.8 mm |
| T | 4 mm |
| D h9 | 5 h6 |
Description
Material: Housing from zinc die-cast ZnAI4Cu1. Shafts made from stainless steel 1.4301 (AISI 304), dismountable. Bevel gears from polyacetal resin, injection-moulded. • Open angular gear drive, ratio 1:1. • Suitable for lower torques and intermittend use. • Shafts running directly in the self-lubricating housing material. • Easy to mount and maintenance-free. • Number of teeth: 16/16. • Shaft angle: 90º. • Temperature range: – 20°C to +100º C. Two shafts with two bevel gears. On the long, straight-through shaft, the bevel gear is at the left side, refered to the short shaft. The shaft for the power input and it´s sense of rotation can be chosen freely.
