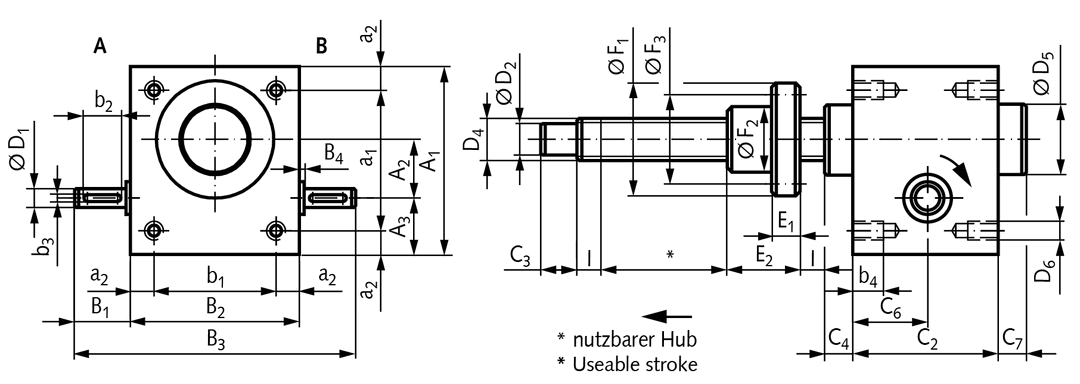

Worm gear screw jack NPT size 3 type C basic gearbox without spindle for spindle Tr.30×6 (For operating instructions please visit the download area of our website www.maedler.de)
Manufacturer part no. 47502300
$1298.28≈ 1127.47 €
Price summary
Listed by MÄDLER at €1127.47. Delivered to France, including shipping, VAT and any customs duty, it comes to about €1370.96. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €1127.47 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €228.49 |
| Total delivered | €1370.96 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Other characteristics
| Height of housing | 130 mm |
| Housing width | 105 mm |
| Length of housing | 82 mm |
| Level of efficiency | 29 % |
| Max stroke force | 25 000 N |
| Required torque at max load | 16 Nm |
| Size | 3 |
| Stroke | 1 mm |
| Weight of gear box | 6 kg |
| Spindle | Tr. 30 x 6 single-thread RH |
Description
Version C: The spindle is fixed to the worm gear. The axial movement is taken over by the threaded nut running outside the gear unit. Housing: Made from aluminium alloy in die-cast version. All sides machined. As standard filled with lubricant. Gearing: Worm made from ETG100, Gear made from Gbz12. Self-locking to a certain extend. Vibration, an increase in the spindle pitch or the use of rolling screw elements release the self-locking. In this case, e.g., a brake motor should be included in the system. For lower stroke speeds, worm gear sets with higher transmission ratios can be supplied on request. Spindle: Material C15, from size 4 C45. On request also available as left-hand, stainless steel or ball screw version. Version C: In this version the spindle is fixed to the worm gear. The axial movement is taken over by the threaded nut running outside the gear unit (also 1 mm stroke per full rotation of the worm shaft). You will find further dimensions on our catalogue page. 1) Stroke pro full rotation of the input shaft. 2) Required torque at max. load (only under optimum conditions, with run-in spindle)
Cheaper alternatives
Semantically close products available for less — check the specs match your need.
MÄDLERIn stock
Worm gear screw jack NPT size 1 type B basic gearbox without spindle for spindle Tr.18×4 (For operating instructions please visit the download area of our website www.maedler.de)
€775.08$892.50
View at seller ↗
MÄDLERBackorder

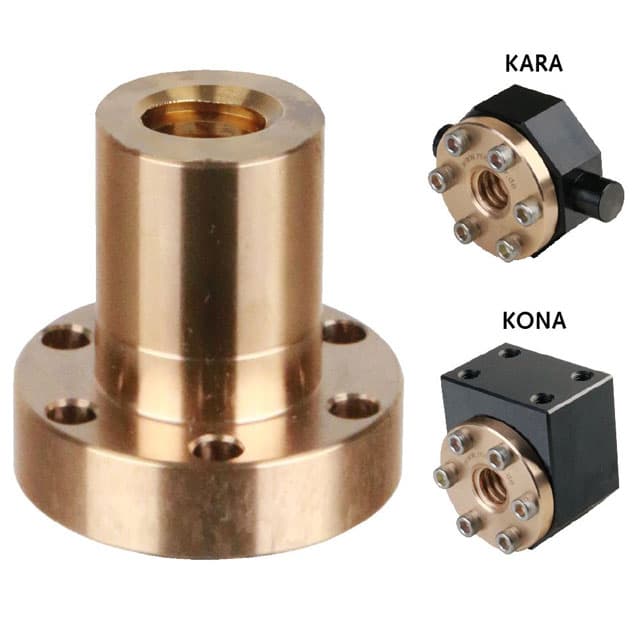

Travelling nut for worm gear screw jack NPT version C size 0 with trapezoidal thread Tr. 16×4
