Travelling nut for worm gear screw jack NPT version C size 1 with trapezoidal thread Tr. 18×4
Manufacturer part no. 47500116
$132.25≈ 114.85 €
Price summary
Listed by MÄDLER at €114.85. Delivered to France, including shipping, VAT and any customs duty, it comes to about €155.82. Prices last checked on 2026-08-05.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €114.85 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €25.97 |
| Total delivered | €155.82 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 300 g |

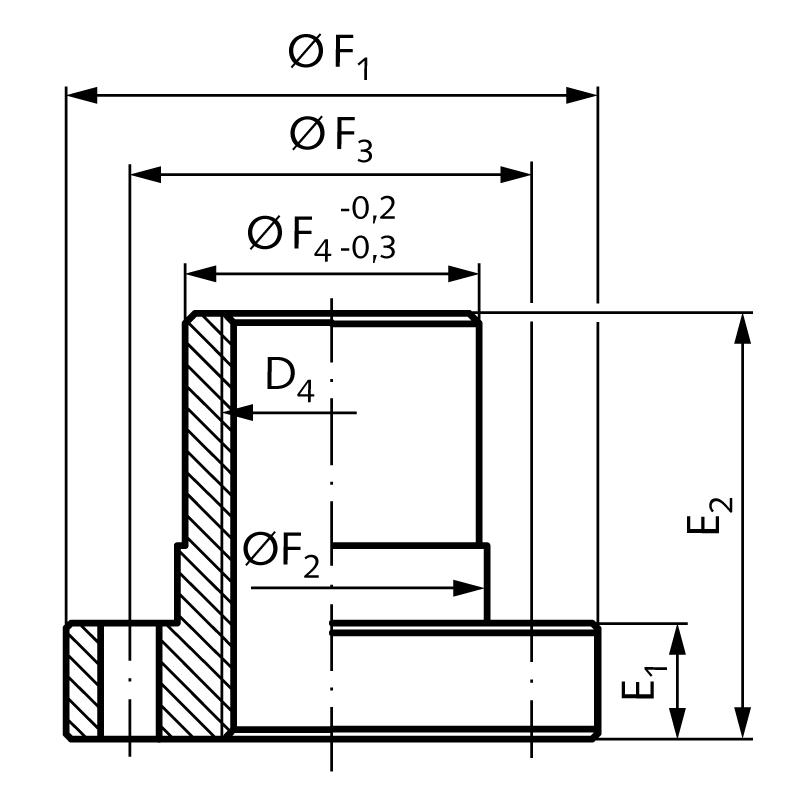

Other characteristics
| E1 | 12 mm |
| E2 | 44 mm |
| F1 | 48 mm |
| F2 h9 | 28 mm |
| F3 | 38 mm |
| F4 | 28 mm |
| Size | 1 |
| Suitable adapter block part number | 64 470 228 |
| Suitable cardan adapter part number | 64 470 128 |
| D4 | TR. 18×4 |
| Mounting hole | 6 x Ø6 |
Description
Material: Bronze CuSn12-C-GC (2.1052). Preferred installation position for compressive force: with the flange facing downwards (compressive load on the flange instead of tensile load on the screws).
