MÄDLERMÄDLER· Mechanics & transmission
Travelling nut for worm gear screw jack NPT version C size 0 with trapezoidal thread Tr. 16×4
Manufacturer part no. 47500016
$127.33≈ 110.32 €
Price summary
Listed by MÄDLER at €110.32. Delivered to France, including shipping, VAT and any customs duty, it comes to about €150.38. Prices last checked on 2026-08-07.
Delivered cost is an estimate for a single item shipped to mainland France; the seller's checkout is authoritative.
On backorderlead time 14 d
Estimated landed cost
| Item | €110.32 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €25.06 |
| Total delivered | €150.38 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 200 g |
Other characteristics

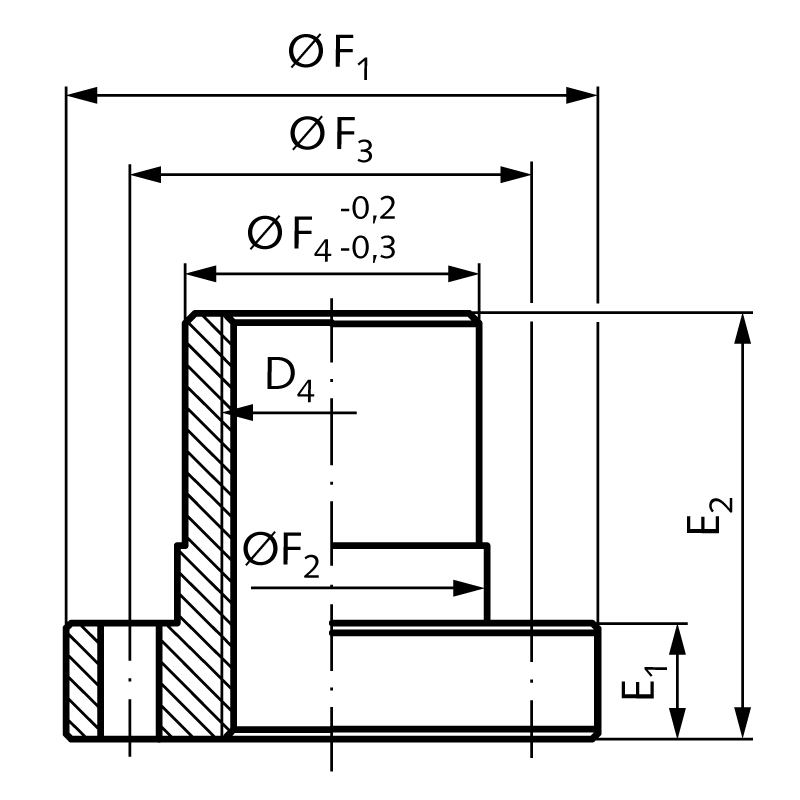

| E1 | 10 mm |
| E2 | 25 mm |
| F1 | 45 mm |
| F2 h9 | 25 mm |
| F3 | 35 mm |
| F4 | 25 mm |
| Size | 0 |
| Suitable adapter block part number | 64 470 225 |
| Suitable cardan adapter part number | 64 470 125 |
| D4 | TR. 16×4 |
| Mounting hole | 6 x Ø6 |
Description
Material: Bronze CuSn12-C-GC (2.1052). Preferred installation position for compressive force: with the flange facing downwards (compressive load on the flange instead of tensile load on the screws).
