MÄDLERMÄDLER· Couplings, Friction Clutches, Safety Couplings

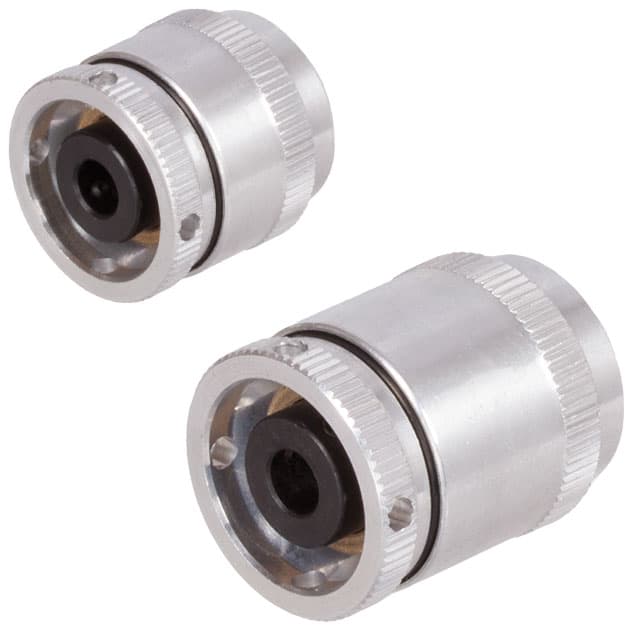

Friction clutch R2 with 6 friction lamellas type A bore 6mm
Manufacturer part no. 61040800
$108.79≈ 94.48 €
In stock — 2 unitslead time 14 d
Estimated landed cost
| Item | €94.48 |
|---|---|
| Shipping | €15.00 |
| VAT (20%) | €21.90 |
| Total delivered | €131.38 |
Estimate for a single item delivered to mainland France, shipped from outside the EU: customs duty and clearance fees may apply and are charged by the carrier.
Datasheets & documents
Specifications (automatically extracted)
Mechanical
| Weight | 48 g |
Other characteristics
| Bore side 1 b1 0 03 0 | 6 mm |
| Bore side 2 b1 0 03 0 | 6 mm |
| No of clutch disks pcs | 6 |
| Outer diameter | 25.8 mm |
| Total length | 32.4 mm |
| Adjustment screw size side 1 | M 3×3. 2×90º |
| Material | Aluminum / Steel |
| Surface | Iridite NCP finish |
| Type | A |
Description

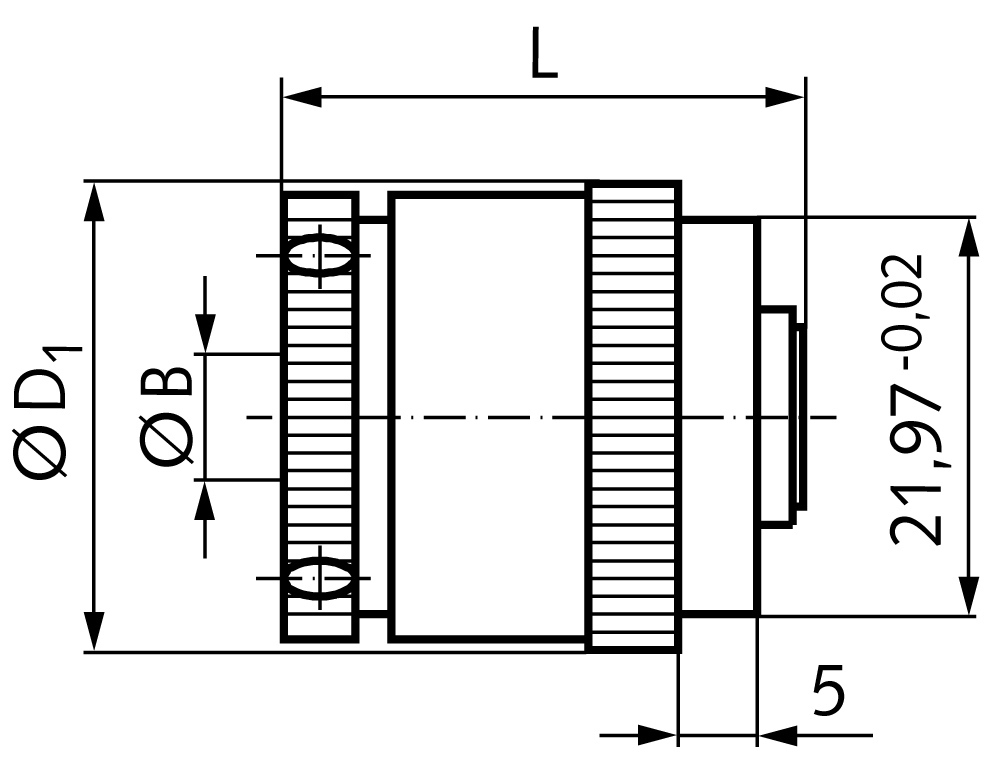

Material: Housing made of aluminium alloy with iridite NCP finish. Inner hub made of steel. As sliding hub for a driving wheel, for concentric arrangement. The driving wheel hasto be mounted and bonded by the customer on the outer diameter 21.97mm +0/-0,02mm. The construction is simple and basically consists of 4 or 6 clutch plates which are connected to the inner hub and held by the outer housing. Max. slip-speed 1000 rpm. Torsional backlash of the coupling below 2°. Torque range with 2 friction plates 2.4 Ncm to 53.8 Ncm. Torque range with 6 friction plates 7.8 Ncm to 132.4 Ncm. Maximum operating temperature 80°C. An adjusting ring – screwed to the outer body – serves to adjust the torque. Two sintered bearing sleeves serve as bearing housing to inner component. An O-ring seals the hub off against dirt.
